Gashendel met reservoir
57.07.97
- Fabrikant
- Magura
- Referentie fabrikant
- D 280.22 ls/ksz | D 280.22 ls/e
- Reeks fabrikant
- D280
Stuklijst van deze module
| N° | Code | Omschrijving | Aantal |
|---|---|---|---|
| 1 | 05.10.17 | Lensbout M6X15 | 1 |
| 2 | 05.15.21 | Bout voor schijfremhendelhuis | 1 |
| 3 | 05.15.20 | Remgreep schijfrem | 1 |
| 4 | 05.15.35 | Gashendelhuis | 1 |
| 5 | 05.15.19 | Draaigreepbuis compleet SB | 1 |
| 6 | 05.15.22 | Hoofdremcilinder | 1 |
| 7 | 05.15.26 | Ring voor hoofdremcilinder | 1 |
| 8 | 05.15.34 | Schoonmaakrubber | 1 |
| 9 | 05.15.31 | Balg voor rempotje | 1 |
| 10 | 05.15.30 | Deksel voor rempotje | 1 |
| 11 | 00.17.83 | Bout M5x16 DIN 912 | 2 |
| 12 | 00.70.14 | Afdichtring C10x13,5 DIN 7603 | 1 |
| 13 | 00.13.01 | Inbus bout M10x1 DIN 908 | 1 |
| 14 | 05.12.98a |
Gashendelhandvat zwart rechts
inbegrepen in 05.15.19 |
1 |

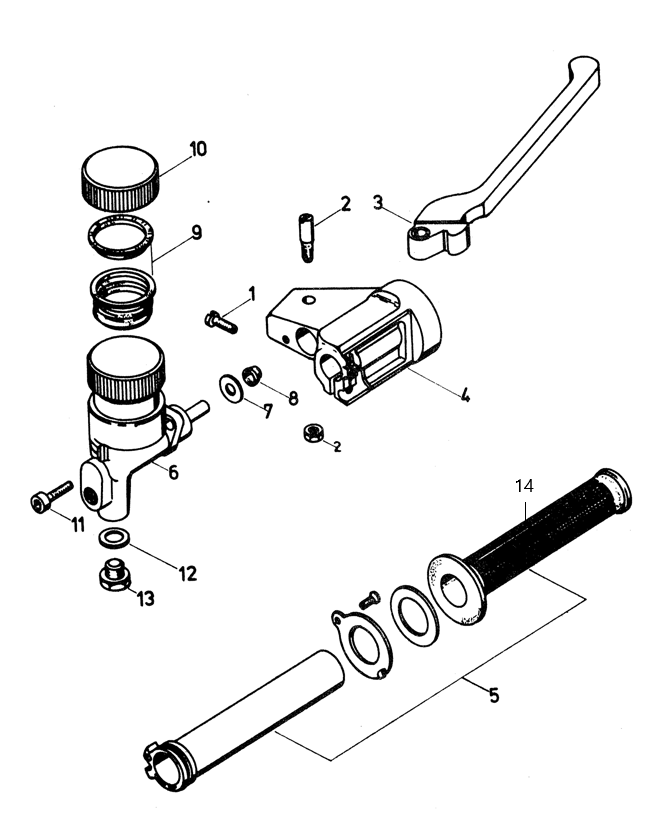

Explosietekening
